5mm LED - Infrared (IR) 940nm 30 Degree Viewing Angle
More images
Regular Price: $0.86
Sale Price: $0.77
You Save: $0.09
PART #: L2-0-IR5TH30-1
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- 5mm IR 940nm Through Hole LED
- Forward Voltage: 1.2V
- Great for IR remote communication!
Share:
 940nm 30 Degree Viewing Angle)
Product Details
| Wavelength: 940nm | Max Reverse Voltage: 5V |
| Luminous Intensity: 20mW typ. @ 20mA | Power Dissipation: 100mW |
| Max Forward Current: 30mA | Operating Temp: -40 to +85 C |
| Pulse Current: 100mA for <= 10ms, duty <= 1/10 | Soldering Temp: 260 C for 3 secs |
| Forward Voltage: 1.2V typ. 1.6V max @ 20mA | Max Reverse Current: 10uA |
Description

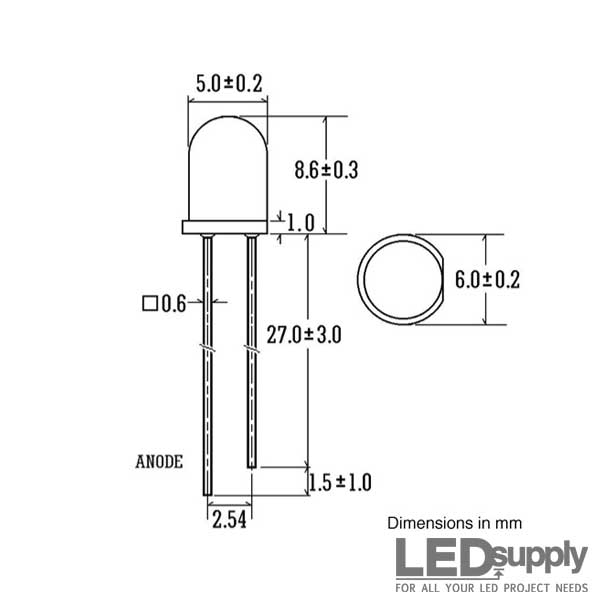

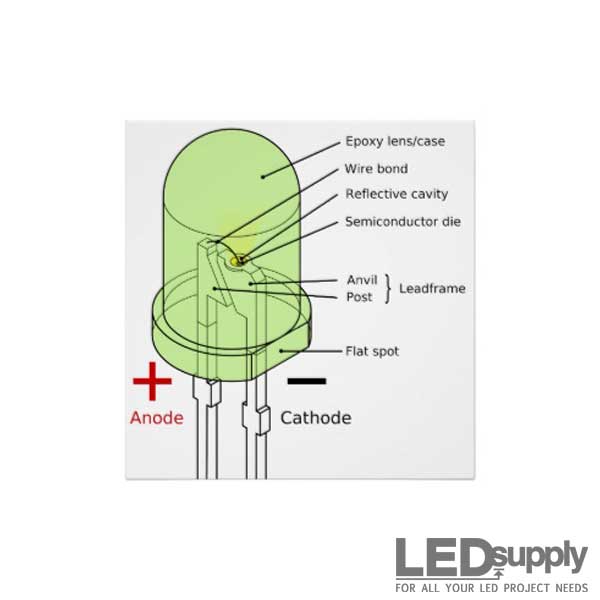

The Infrared 5mm LED (T-1 ¾ through-hole) is extremely bright at 20mW; its typical forward voltage is 1.2Vdc and drive current is 20mA, with a maximum forward current of 30mA. The lens is clear, 5mm in diameter and projects light at a half angle of 30°. The bi-pin legs are the positive and negative leads of the LED; the longer of the two leads is the positive side (Anode). There is also a flat side on the base of the LED, this represent the negative side (Cathode).
All our 5mm LEDs are built by top manufacturers, in a variety of colors and illumination patterns. If you need additional product information please call or email us your question.
