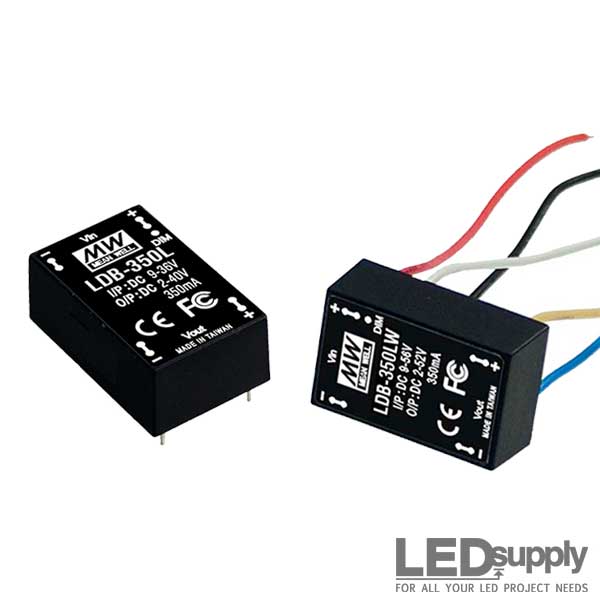

LDB-L Series MEAN WELL Buck-Boost Mode CC DC-DC LED Drivers
More images
Regular Price: $11.37
Sale Price: $10.24
You Save: $1.13
PART #: LDB-L
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- Low-Voltage DC Constant Current Device
- Driver Styles: Pinned or Wired
- Works with PWM dimming!
Share:
Product Details
| INPUT VOLTAGE: 9 ~ 36VDC | BUCK-BOOST MODE: Can handle smaller or larger loads! |
| OUTPUT CURRENT: Varies from 300mA - 600mA | DIMMABLE: PWM dimming with remote ON/OFF |
| CONNECTIONS: Pin (L) and Wire (LW) | HIGH EFFICIENCY: 91% |
| WARRANTY: 3-Years | SAFETY: Short-Circuit & Over temperature |
| Super Small & Compact Size! | CASING: Fully enclosed plastic case (UL 94V-0) |
Description
Mean Well's LDB-L Series DC-DC LED drivers offer constant current buck-boost mode output. This low voltage driver features 9-36VDC input and outputs 2-40VDC. The buck-boost mode allows for slightly higher or lower LED voltage than your input voltage. They have a built-in EMI filter that complies with EMI lighting requirements (EN55015) without connecting any EMI restraint components, making them very convenient for PCB installations. Another great feature is they can be dimmed via PWM dimming controls.
Connection Style Variations
The Mean Well LDB-L series comes in 2 different connection types. The standard is a pin version, and 'W' is the wired version.
Product Support
LEDSupply is trained on all Mean Well products and available to answer any of your questions. Still unsure of what Mean Power Source is right for you? Take a look at our Mean Well LED Driver Guide which explains the many variations and styles of LED power supplies.
Technical Documentation
LDB-L Series Specifications
| Model | Input (VDC) |
Output | Dimming | Dimensions (mm) |
Connection Type |
||
|---|---|---|---|---|---|---|---|
| Volt. Range (VDC) |
Current (mA) |
Temp. (°C) |
|||||
| LDB-300L LDB-300LW |
9~36VDC | 2~40VDC | 300mA | -40 ~ +71°C | PWM & ON/OFF Control | 31.8(L) x 20.3(W) x 12.2(H) | L=Pin Style LW=Wire Style |
| LDB-350L LDB-350LW |
9~36VDC | 2~40VDC | 350mA | -40 ~ +71°C | PWM & ON/OFF Control | 31.8(L) x 20.3(W) x 12.2(H) | L=Pin Style LW=Wire Style |
| LDB-500L LDB-500LW |
9~30VDC | 2~32VDC | 500mA | -40 ~ +71°C | PWM & ON/OFF Control | 31.8(L) x 20.3(W) x 12.2(H) | L=Pin Style LW=Wire Style |
| LDB-600L LDB-600LW |
9~28VDC | 2~30VDC | 600mA | -40 ~ +71°C | PWM & ON/OFF Control | 31.8(L) x 20.3(W) x 12.2(H) | L=Pin Style LW=Wire Style |
Misc. Characteristics
Characteristics
LDB-L Series
INPUT VOLTAGE
9 ~ 36VDC
OUTPUT CURRENT ACCURACY
±5%
REMOTE ON
Power on with dimming: PWM DIM~DIM- >2~10VDC or open circuit
REMOTE OFF
Power off: Analog DIM~DIM- <0.5VDC or short
PWM DIMMING FREQUENCY
100 ~ 1KHz
MAX. PWM SIGNAL CURRENT
1mA
SHORT CIRCUIT
Regulated at rated output current / recovers automatically after fault removed
OVER TEMPERATURE
Shut down at 145ºC
WORKING TEMP.
-40 ~ +71°C (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +125°C, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/°C
VIBRATION
10~500Hz, 2G 10min./1cycle, period for 60min. each along X,Y,Z axes
EMC EMISSION
Compliance to EN55015
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,6,8; light industry level, criteria A
MTBF
2000Khrs min. MIL-HDBK-217F (25°C)
Full Documentation
LDB-L
×
