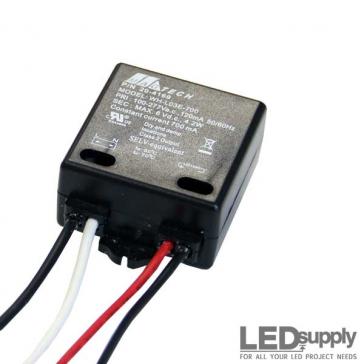

MagTech - 3-Watt 700mA Constant Current LED Driver
More images
Regular Price: $20.23
Sale Price: $18.20
You Save: $2.03
PART #: L03E-700
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- AC Input constant current LED Driver
- Current Output: 700mA
- Output Power: 1-3 Watts
Share:
Product Details
| 90 ~ 277VAC Input | 1.71"L x 1.63"W x 0.90"H |
| Output: 700mA Constant Current, 6V max | 1 ~ 3 Watts Output Power |
| 6" 18AWG wire connections | Short Circuit & Overload Protection |
| UL and CE Certified | RoHS Compliant |
Description
The MagTech® L03E-700 3-Watt LED Driver accepts 90~277VAC, and outputs a constant 700mA current with a varying DC voltage between 4.5-6VDC. The driver is very compact at 1.71"L x 1.63"W x 0.9"H in size. This constant current LED driver is both UL and CE certified as well as RoHS compliant.
Technical Documentation
| Operating (Ambient) Temperature: | -20 to +60°C |
| Max Case Temperatures: | -20 to +70°C |
| Humidity (Non-Condensing): | 5% to 95% |
| Cooling: | Convection |
| Vibration Frequency: | 5 to 50 Hz |
| Acoustic Noise: | Less than 24db (20~20K Hz) |
| Input Voltage (VAC | 100 ~ 277VAC |
| Input Frequency (Hz) | 50/60 Hz |
| Output Voltage (VDC) | 4.5 ~ 6 VDC |
| Output Current (Constant) | 700mA |
| Output Power (W) | 1 ~ 3 W |
| Short Circuit Protection | Yes |
| Overload Protection | Yes |
| Maximum Temperature @ Tc | 70° C |
| Safety Approval | UL and CE Certified (see datasheet for specifics) |
| Dimension | 1.71" x 1.63" x 0.9" (LxWxH) |
| Wire Connections | 6" 18AWG wire |
| Weight | 55g |
Full Documentation
L03E-700 Datasheet
×
