LEDSupply only offers top brand LEDs like Cree – Our most popular Cree LEDs are below:
Cree XM-L2 LED
The Cree XLamp XM-L2 Star LED builds on the original XM-L, increasing lumen output up to 20% while providing a single die LED point source, low forward voltage and a maximum drive current of 3000mA. The XM-L2 LED is re-flowed onto the LUXdrive Pixus Star board, which provides an easy to use XM-L2 LED that is electrically isolated.

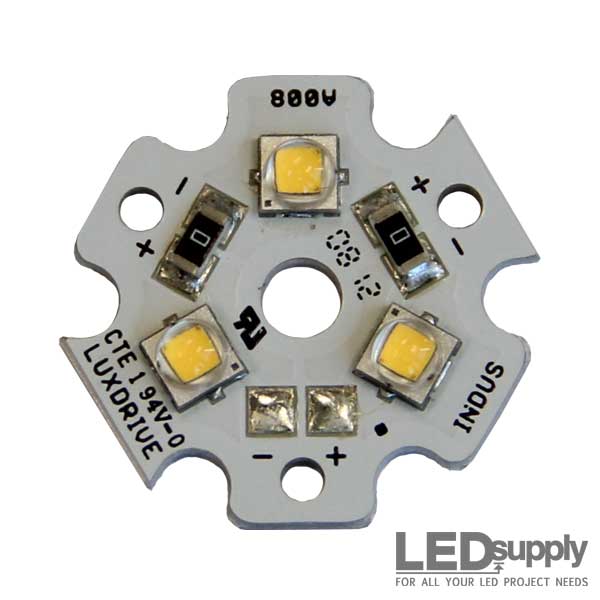

Cree XP-G2 LED
Built on the SC³ Technology Platform, the XLamp XP-G2 LED delivers up to 20% more Lumens per watt and 2.5 times the Lumens-per-dollar over the original XP-G, lowering system cost up to 57%. The metal cord board was designed to mount either one or three Cree XP-G2 LEDs (commonly referred to as 1-Up or 3-Up Stars). The LuxDrive™ star board is electrically isolated so multiple stars can be mounted to the same heat sink without using an electrically isolating compound. The hexagonal makes it easy to connect and power in a closely packed arrangement for increased light output per unit area.

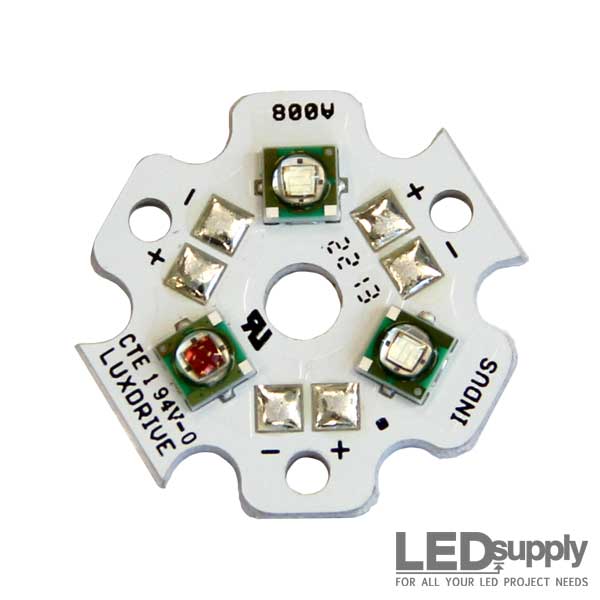

Cree XP-E LED
The XLamp XP-E LED combines the proven lighting-class performance and reliability of the XLamp XR-E LED in a package with 80% smaller footprint. The metal cord board was designed to mount either one or three Cree XP-E LEDs (commonly referred to as 1-Up or 3-Up Stars). The LuxDrive™ star board is electrically isolated so multiple stars can be mounted to the same heat sink without using an electrically isolating compound. The hexagonal shape makes it easy to connect and power in a closely packed arrangement for increased light output per unit area.
Cree XT-E LED
Cree XLamp® XT-E is Cree’s highest performing silicon carbide-based LED technology, delivered in Cree’s industry-standard XP/XT packaging. XT-E White sets the new standard for high performance and dramatically lowers system cost. XT-E Royal Blue is Cree’s highest performing source of royal blue light for remote-phosphor applications. The metal cord board was designed to mount either one or three Cree XT-E LEDs (commonly referred to as 1-Up or 3-Up Stars). The LuxDrive™ star board is electrically isolated so multiple stars can be mounted to the same heat sink without using an electrically isolating compound. The hexagonal shape makes it easy to connect and power in a closely packed arrangement for increased light output per unit area.
Cree MK-R LED
The Cree XLamp MK-R LEDs are also built on Cree’s revolutionary silicon-carbide SC³ Technology™. The MK-R provides incredible efficacy with over 200 Lumens per watt (LPW). abuse contacts The 6 mm optical source can deliver 1600 lumens at 15-Watts and is available from 2700 K to 7000 K color temperatures with a minimum CRI of 70, 80 and 90 (at selected color temperatures). The MK-R will be offered by LEDSupply mounted to a standard 20mm hexagonal metal core printed circuit board.

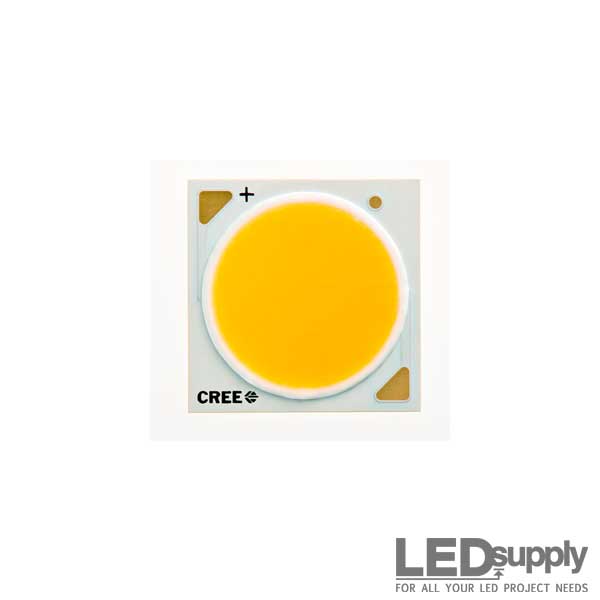

Cree CXB COB LED
Cree’s new CXB LED Arrays deliver high lumen output and efficacy in a family of single, easy-to-use components. Optimized to simplify designs and lower system cost, Cree’s CXB LED arrays deliver system level performance from 300 to over 16,000 lumens and can enable applications ranging from GU10s and commercial downlights to outdoor area lighting and high-bay lighting.
