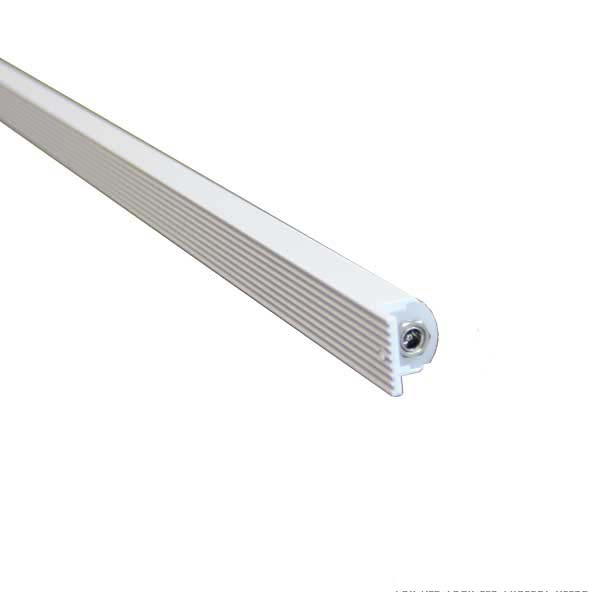

LVL.2 Under-Cabinet LED Fixture
These pictures are from a local contractor who successfully installed the LVL.2 Under-Cabinet LED into a Kitchen renovation. The customer wanted direct light on the counter-tops and ambient light for night time, so we decided several 3-foot, 2-foot and 1-foot strategically placed LVL.2 strips would suit their needs. The electricians took care of the details, but anyone can set these lights up. The main requirements besides the LVL.2 fixture is the need for a "switching power-supply" and "jumper cables". The required power supply is one that connects to 120vac, but outputs 12vdc or 24vdc; the power-supply also needs a 2.5mm barrel plug connector (http://www.ledsupply.com/12vdc25a.php). The jumper cable allows power to move from one LVL.2 fixture to another. The LVL.2 itself comes in three different color temperatures & lengths, with mounting holes at each end of the strip.
Cigar Humidor Lit with LEDs
(16) Warm-White 5mm LEDs driven in-parallel from a 350mA constant current dimmable Wired BuckPuck
ABOVE PIC: REEF-CENTRAL AWARD WINNING TANK & THREAD of the MONTH
BELOW PICS: AquaPOD Tank w/ DIY INSTRUCTIONS
Above: Reef-Tank LED light using Cree XR-E LEDs & Below: tank light using a LuxStrip II LED Light Strip
